When setting up a solar power system, choosing the right charge controller is crucial to optimizing efficiency and battery lifespan. The two main types—MPPT (Maximum Power Point Tracking) and PWM (Pulse Width Modulation)—have distinct advantages and applications. In this article, we will compare MPPT and PWM charge controllers to help you determine which is best for your solar setup.
1. What is a Solar Charge Controller?
A solar charge controller regulates the voltage and current coming from solar panels to the battery, preventing overcharging and ensuring efficient energy use. The two main types, MPPT and PWM, work differently and have varying efficiency levels.
2. What is a PWM Charge Controller?
PWM charge controllers are the older, simpler, and more cost-effective option. They regulate power by rapidly switching the solar panel’s connection to the battery, ensuring it stays within a safe voltage range. However, they do not optimize power extraction, which can lead to energy losses, especially in systems with high-voltage solar panels.
✅ Advantages of PWM Controllers:
- Lower cost
- Simple design and easy installation
- Suitable small solar setups
❌ Disadvantages of PWM Controllers:
- Less efficient (typically 70-80%)
- Short service life, easy to be scrapped quickly
- Works best when solar panel voltage closely matches battery voltage
- Not ideal for large solar systems or areas with variable sunlight
3. What is an MPPT Charge Controller?
MPPT charge controllers use advanced algorithms to track the maximum power point of solar panels, adjusting voltage and current for optimal energy conversion. This technology significantly improves efficiency, especially when panel voltage is higher than battery voltage.
✅ Advantages of MPPT Controllers:
- High efficiency (up to 98%)
- Long product life
- Maximizes power harvest, especially in low-light conditions
- Works well with high-voltage solar panels and long cable runs
- Ideal for large solar systems and areas with fluctuating weather
❌ Disadvantages of MPPT Controllers:
- Higher cost than PWM
- More complex circuitry and installation

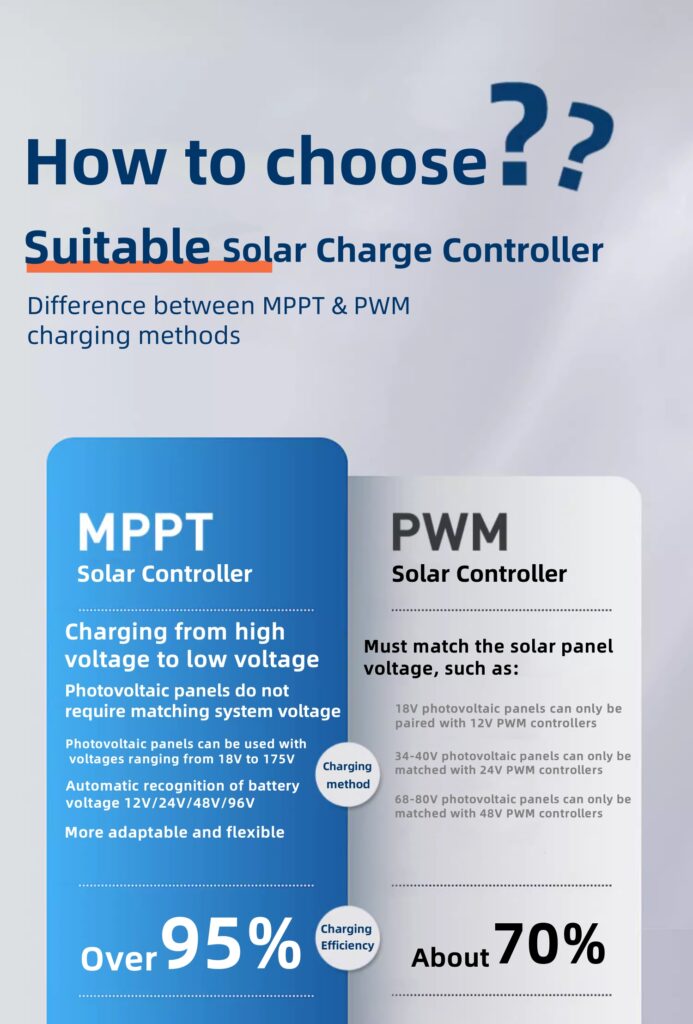

4. MPPT vs. PWM: Key Differences
| Feature | PWM | MPPT |
|---|---|---|
| Efficiency | 70-80% | Up to 98% |
| Best for | Small systems, 12V/24V panels | Large systems, high-voltage panels |
| Cost | Lower | Higher |
| Performance in Cloudy Weather | Lower efficiency | High efficiency |
| Battery Charging | Direct connection, lower efficiency | Optimized power conversion |
5. Which One Should You Choose?

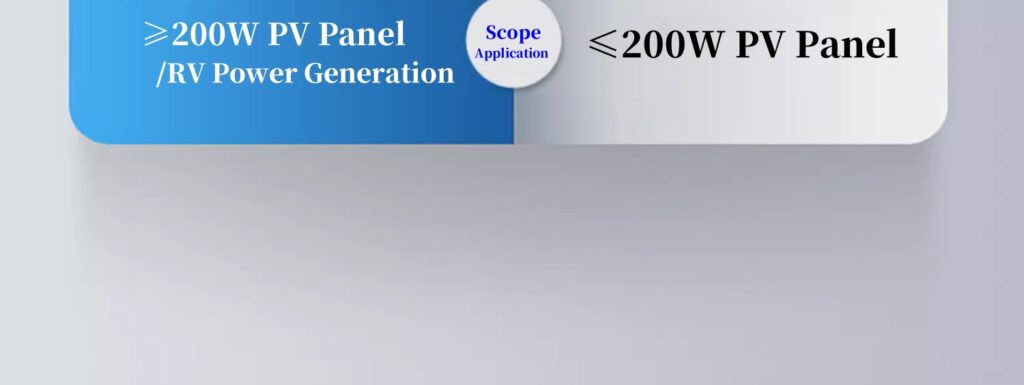

- Choose PWM if you have a small off-grid system, budget constraints, and a solar panel voltage that matches your battery.
- Choose MPPT if you need high efficiency, have a large system, or use solar panels with higher voltages than your battery bank.
6. Long-term plan
MPPT and PWM charge controllers each serve specific needs in solar power systems. While PWM controllers are budget-friendly and suitable for small applications, MPPT controllers provide superior efficiency and are better for larger, more demanding setups.
At Yingke, we specialize in high-efficiency MPPT solar charge controllers with up to 98% conversion efficiency, ensuring maximum power output for your solar system. Contact us today for bulk orders, OEM & ODM services, and let us help you power your energy solutions efficiently! 🚀
