When building any solar power system—whether it’s for a small home, RV, cabin, or remote site—the solar charge controller is one component you simply can’t skip. It works quietly in the background, ensuring your batteries charge safely, your panels run efficiently, and your devices receive stable power.
But what exactly does a solar charge controller do, and what is the principle behind its operation?
This guide breaks down the controller’s functions, how it interacts with the rest of the system, and why MPPT technology has become the preferred choice for modern solar setups.
What Does a Solar Charge Controller Do?
Solar panels don’t produce a fixed amount of power—sunlight intensity, temperature, and shading cause continuous fluctuations. A solar charge controller acts as the system’s manager, stabilizing and regulating this inconsistent energy before it reaches the battery.
A charge controller is responsible for:
1. Managing Energy Coming From the Solar Panels
Throughout the day, the controller responds to changing environmental conditions:
• Early morning / cloudy weather
Panel voltage is often too low to begin charging.
The controller prevents reverse current flow so the battery does not discharge back into the panels.
• Normal sunlight
Once the panel voltage exceeds the required threshold, the controller begins charging.
It regulates voltage and current through controlled stages (bulk → absorption) to ensure healthy battery charging.
• When the battery is full
The controller switches to float mode, supplying only a minimal current.
This avoids overcharging, reduces heat buildup, and protects battery lifespan.
Tip: Always choose a controller that matches or exceeds the voltage and current of your solar array. Undersizing a controller can lead to failure or system shutdowns.
2. Controlling Power Distribution in the Solar System
Beyond battery charging, a controller also safeguards the load side:
- It powers DC loads or supplies current to the inverter when available.
- If battery voltage drops to a preset cut-off level, the controller disconnects the output to prevent deep discharge.
This ensures your battery bank remains protected under all operating conditions.
How Does a Solar Charge Controller Work?
Positioned between the solar array and battery bank, the controller constantly adjusts charging behavior based on:
- Solar panel voltage & current
- Battery state of charge (SOC)
- Charging profile (lead-acid, lithium, GEL, AGM, etc.)
There are two main controller technologies:
- PWM (Pulse Width Modulation) – simpler, lower cost
- MPPT (Maximum Power Point Tracking) – higher efficiency, ideal for modern systems
Even in the same solar system, their performance can differ dramatically.

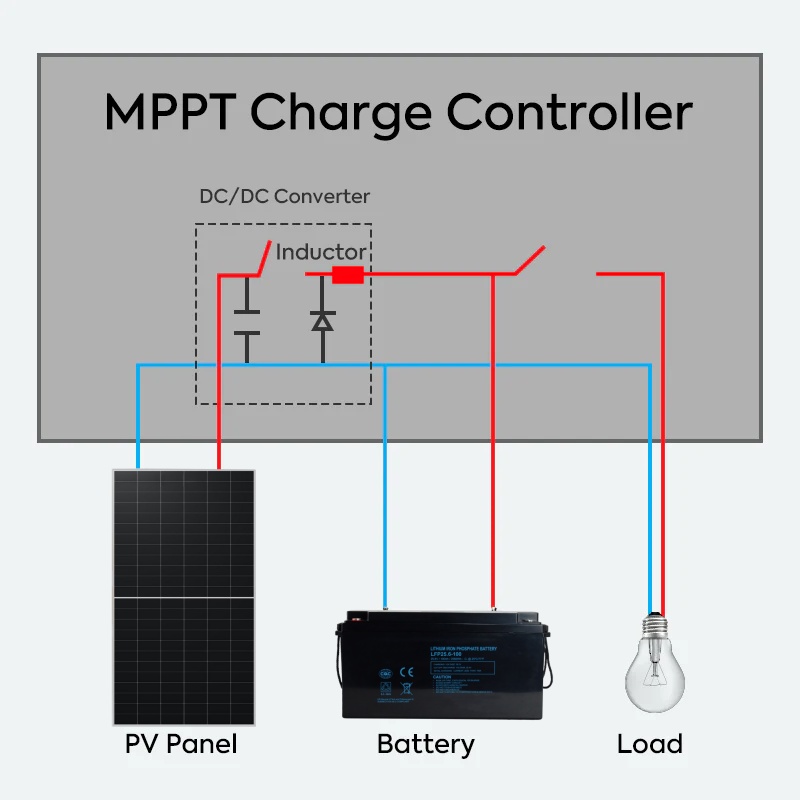

MPPT Solar Charge Controller Working Principle
An MPPT controller uses advanced algorithms to extract the maximum available power from the solar panels at any moment.
How it works:
- It scans the panel output in real time to locate the “maximum power point”—the voltage and current combination that yields the most watts.
- Using high-frequency DC-DC conversion, it steps down excess voltage and increases current accordingly.
- This allows the controller to deliver nearly the full power produced by the solar panels—typically 95–98% efficiency depending on conditions.
Example: Why MPPT Performs Better
Let’s compare a 12V battery system running on a 120W panel (Vmp: 19.4V, Imp: 6.17A).
With a PWM controller
A PWM unit forces the panel to operate at battery voltage (around 12V), wasting available voltage.
Approx usable power:
12V × 6.17A ≈ 74W
Much of the solar panel’s capability is lost.
With an MPPT controller
An MPPT controller keeps the panel at its optimal operating point (around 19.4V):
- Panel power: 19.4V × 6.17A ≈ 120W
- Converted battery charging current: ≈ 9–10A (after conversion losses)
This means you receive 40–60% more actual charging power compared to a PWM controller.
Why a Solar Charge Controller Is Essential
Your solar charge controller:
✔ Protects your battery from overcharge, over-discharge, and reverse flow
✔ Ensures stable output for DC loads and inverters
✔ Maximizes energy harvested from your solar panels
✔ Extends the overall lifespan of your power system
For off-grid setups, RVs, and home solar storage systems, a reliable MPPT controller is a must-have.
