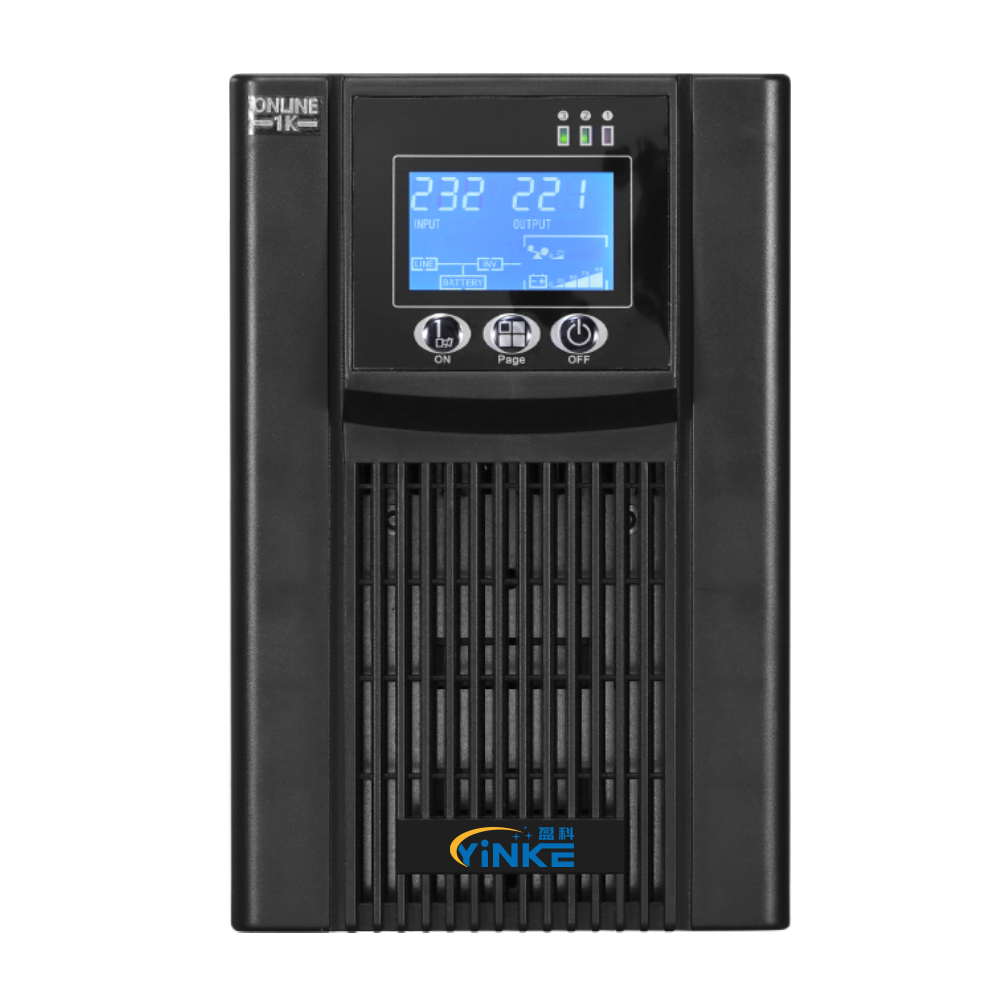

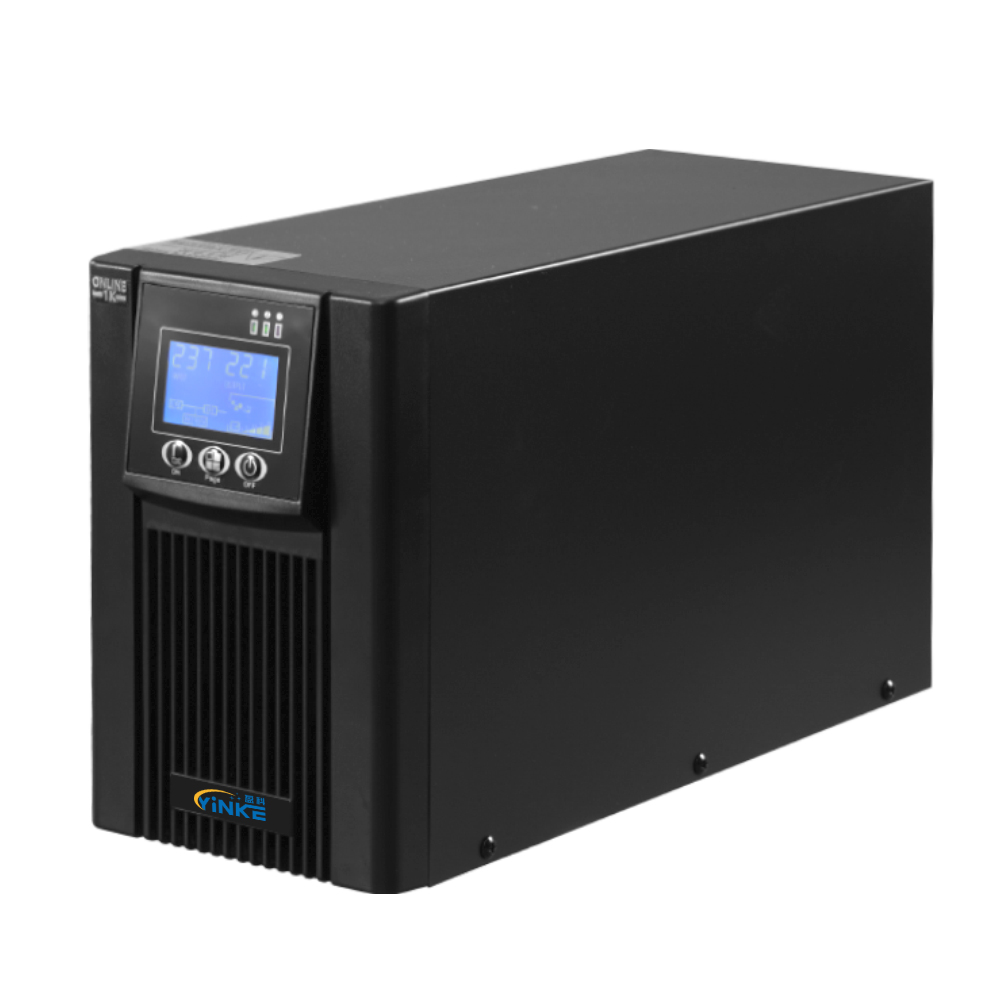

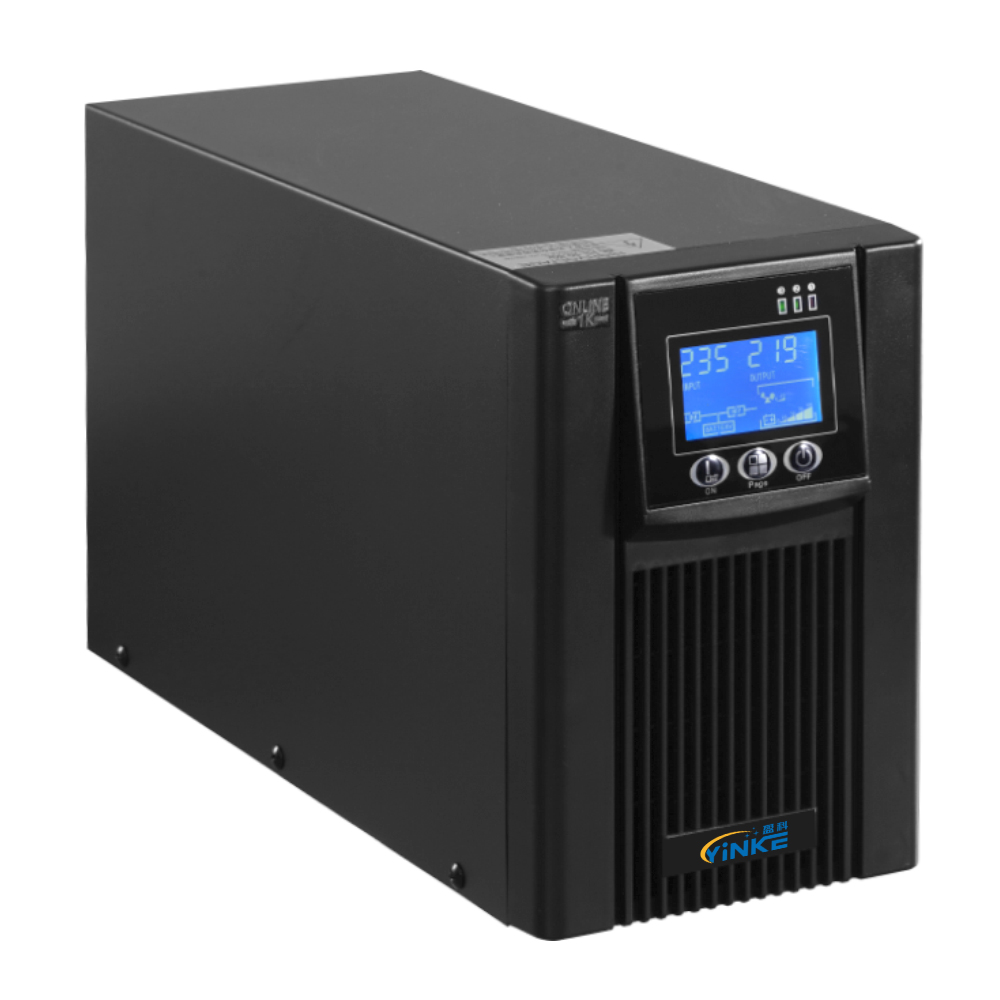

Yingke Factory UPS 1KVA 2KVA 3KVA 36VDC 72VDC Online Uninterruptible Power Supply External Battery
-Excellent performance because of an MCU intelligent control technology
-A wide range of applicable loads because of pure sine wave AC output
-Charge by mains supply for flexible configuration (optional function)

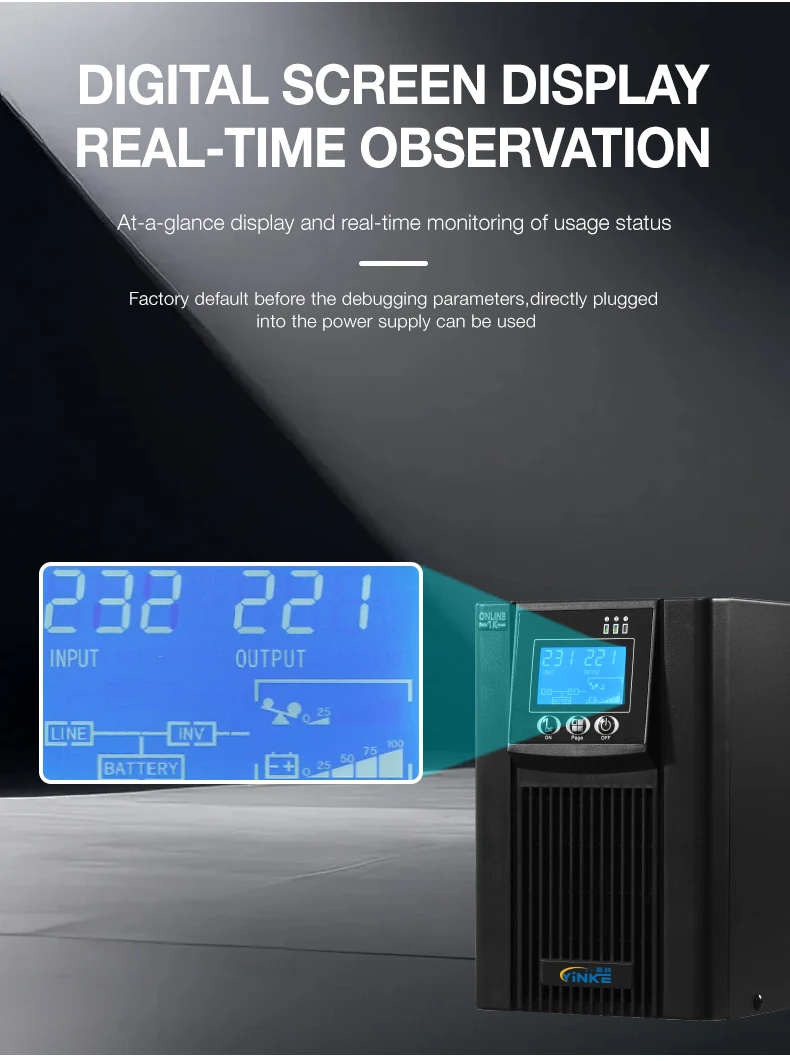

-Overcharge protection and overdischarge protection for a longer battery life-LCD and LEDS for visualization of operation status of the equipment
-Overall automatic protection and alarms, Including AC output overload protection
Products Description
Global Professional Solar Charge Controller Factory, Providing OEM & ODM Solar Charge Controller Solution Services.
Description
Yingke Factory Uninterruptible Power Supply Feature:
Reliable Power Protection: This online UPS (1/2/3K) from Yingke offers overvoltage protection, ensuring the safety of your medical equipment and computerized instruments from power surges and spikes.
High Capacity and Efficiency: With a rated power of 700W/1400W/2100W and a power factor of 0.99 (standard), this UPS provides efficient power supply to your devices.
Long-Lasting Battery Life: Equipped with 12V/7~9Ahx2-8 lead-acid maintenance-free batteries, this UPS ensures a reliable backup power source for extended periods.
Fast and Smooth Transfer: The 1/2/3K UPS features a transfer time of 0ms, ensuring seamless power continuity during outages.
Compliance and warranty: This product complies with CE and RoHS certification standards and comes with a two-year warranty, giving you peace of mind and making it suitable for any scenario environment.
|
Specifications
|
||||||
|
CAPACITY*
|
1000VA/700W
|
2000VA/1400W
|
3000VA/2100W
|
|||
|
INPUT
|
||||||
|

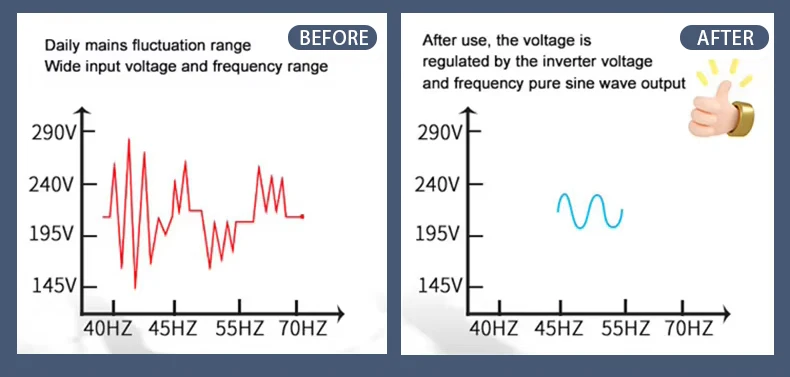

Operating voltage range
|
145vac-265vac
|
|||||
|
Input frequency
|
50/60 Hz+/-3 Hz(Auto Fit)
|
|||||
|
Phase
|
Single phase with ground
|
|||||
|
Power Factor
|
≥0.99@220-230 VAC(input voltage)
|
|||||
|
OUTPUT
|
||||||
|
Rated output voltage
|
220VAC
|
|||||
|
AC Voltage Regulation
|
±10%
|
|||||
|
Output frequency(synchr
onous with main frequency) |
47-53 Hz(nominal value atHz),57-63 Hz(nominal at Hz)
|
|||||
|
Overload
|
105%~110%:Only a warning
110%~130%:UPS shuts down after 1minute at battery mode or transfer to bypass when the utility is normal. >130% :UPS shuts down immediate at battery mode or transfer to bypass when the utility is normal. |
|||||
|
Current Crest Ratio
|
3:1
|
|||||
|
Harmonic Distortion
|
≤3%THD (linear load);6%THD (non-linear load)
|
|||||
|
Transfer Time
|
4ms(Typicad)
|
|||||
|
Topology
|
Online Interactive
|
|||||
|
Waveform type
|
Pure Sine Wave
|
|||||
|
EFFICIENCY
|
||||||
|
AC Mode
|
~85%
|
~88%
|
||||
|
Battery Mode
|
~83%
|
~85%
|
||||
|
BATTERY
|
||||||
|
Battery Type(Standard Model)
|
12V/7~9AH
|
|||||
|
Numbers
|
2/3
|
4/6
|
6/8
|
|||
|
Recharge Time
|
4 hours recover to 90%capacity(Typical)
|
|||||
|
Charging Current
|
Standard Model:1.0A(max.)
Long-run Model:1A/2A/4A/6A
|
|||||
|
Charging Voltage
|
27.3V±1 /41.0V±1%
|
54.7V±1%/82.1V±1%/109.4V±1%
|
||||
|
PHYSICAL
|
||||||
|
Dimension,DxWxH(mm)
|
380X145X225
|
440X190X320
|
||||
|
Net Weight (kg)
|
12
|
8.5
|
30
|
12.5
|
24.5
|
13.5
|
|
ENVIRONMENT
|
||||||
|
Operation Humidity
|
20-95%RH@0-40℃(non-condensing)
|
|||||
|
Noise Level
|
Less than 45dBA@1 Meter
|
|||||
|
MANAGEMENT
|
||||||
|

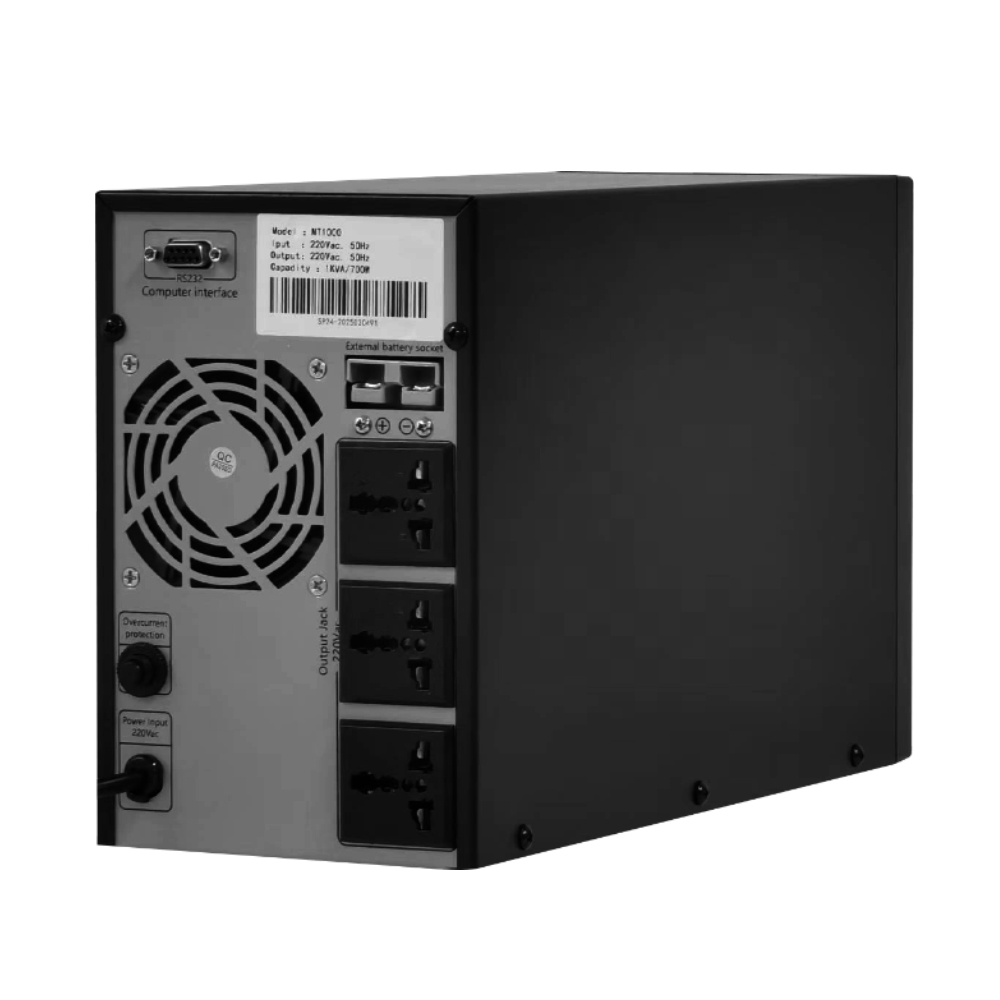

Smart RS-232 or USB
|
Supports WindowsR 2000/2003/XP/Vista/2008/7/8,Linux,Unix and MAC
|
|||||
|
Optional SNMP
|
Power management from SNMP manager and web browser
|
|||||
|
Derate capacity to 80%of capacity in Frequency converter mode or when the output voltage is adjusted to 200/208VAC.
|
||||||
|
Product specifications are subject to change without further notice.
|
||||||
